"Double floor bus" is one of the 10 key words in China commercial vehicle industry in 2013, as it represents the latest trend in the development and production of large tourist buses domestically and expresses the long-standing market-oriented principles of the commercial vehicle companies. Golden Dargon XML6102J58Y is a 10m double floor bus launched by Golden Dragon following this principle, and it meets the latest market needs, reflecting the technology-driven thinking of Golden Dragon to some extent.

Test Drive Golden Dragon XML6102J58Y

Tests in the past always focused on the performance of different the vehicle, while this time it is more like a passenger or a purchaser focusing on the drive experience and cost benefit. And these aspects are the 10m double floor bus's main starting points for its model development.

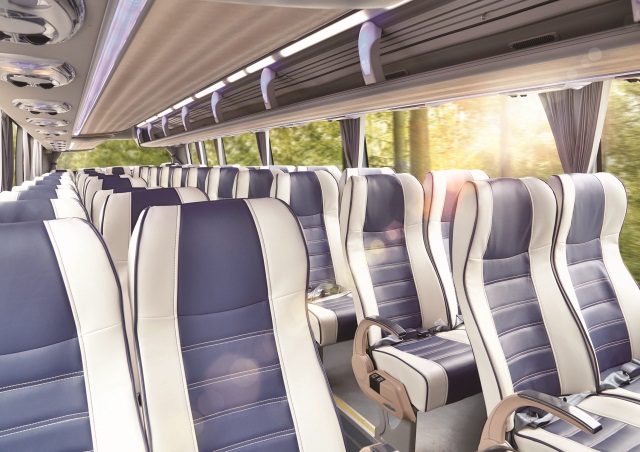

Interior of XML6102J58Y

Although there is currently no exact definition for double floor buses, but it has two distinctive features: the body height is between single and double-decker bus for a bigger luggage compartment volume; six more seats are added due to the lower design of its drive zone.

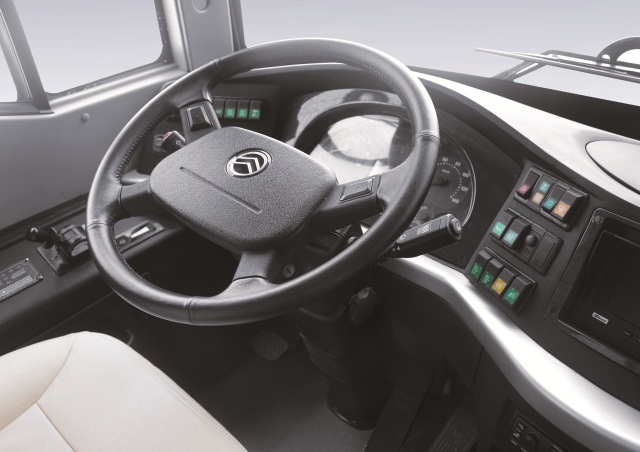

Panel of XML6102J58Y

Do not underestimate these six seats, they improved 13% capacity for buses of the same body length. For example, a 10m one and a half bus can reach a 12m normal bus's capacity .

Details of XML6102J58Y Test Drive

Although the test was short, the power matching of XML6012J58Y was impressive. The acceleration in high and medium speed is quite amazing, with II block speed limit at 40 km/h, and 60km/h speed by III block. Its acceleration time from 0 to 60 km/h is only about 16s.

This tested bus is equipped with 8.424L Yuchai YC6L310-42 engine, with the output power 218 kW, more than enough to drive this 10m 12,000 kg model. Its low speed and high torque contribute to the excellent acceleration performance.

Sheet 1: Golden Dragon XML6102J58Y specifications

Dimension/mm

10490×2 500×3 600(3 400)

Wheelbase/mm

5150

(Front suspension/Rear suspension)/mm

2 210/3 130

Minimum ground clearance/mm

190

(Approach angle/departure angle)/°

9/9

(Gross vehicle weight/curb vehicle weight)/kg

16500/12 200

Minimum turning diameter/m

≤24

Maximum set speed/(km/h)

100

Engine

Yuchai YC6L310-42

Displacement／L

8.424

Emission standard

China IV

Maximum power/kW

206(2 300 r/min)

Maximum torque/Nm

1 100(1 400～1 600 r/min)

Type

6-cylinder, in line, inter-cooling,

Gearbox

Qijiang S6-90

Suspension

5.5 front independent suspensions，6 outside airbags

Front axle

5.5 t front axle

Allowable passenger(driver included)

24～51(53)

Sheet 2: Seats dimensions/mm

Cushion dimension (length x width)

440×440

Cushion distance to ground

440

Cushion distance to top

1040

Backrest height

760

Distance between seat front and back legs

270

Seat adjustable spacing

65

Aisle width

450

(Note: the first and last row excluded)

Sheet 3: Boarding step height/mm

Front door(1-7 level)

390/260/270/290/300/240/280

Middle door(1-5 level)

390/290/290/290/290

Sheet 4: Acceleration time test/s

Acceleration range

Test 1

Test 2

Test 3

Average

0～40 km/h

10.11

9.47

9.67

9.75

0～60 km/h

16.81

16.29

16.14

16.41

0～80 km/h

28.41

25.23

25.47

26.37

Sheet 5: Inner noise test/dB

Speed

Driver zone

Front

Middle

Back

Idling

56.2

58.7

59.7

64.4

40 km/h

65.8

62.0

66.5

69.4

60 km/h

66.9

64.4

70.3

72.6

80 km/h

70.9

67.9

72.6

74.3
